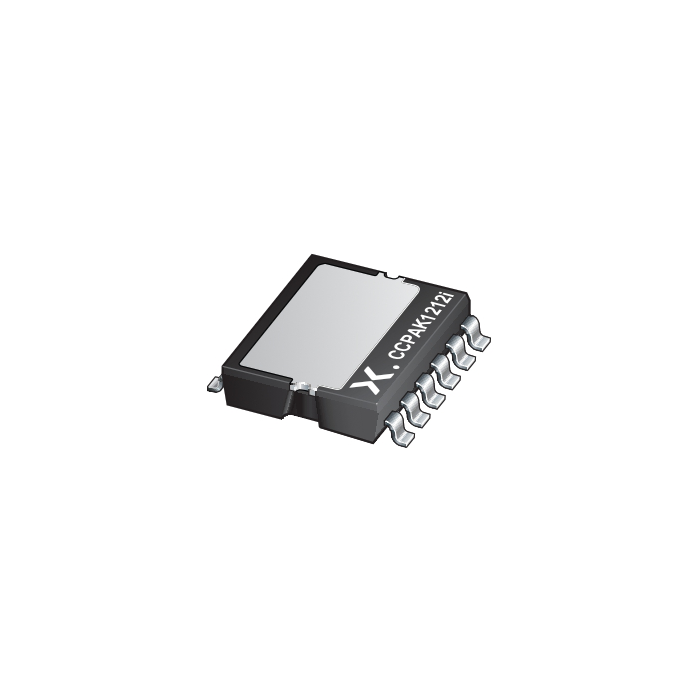

The GAN039-650NTB is a 650 V, 33 mΩ Gallium Nitride (GaN) FET in a CCPAK1212i inverted package. It is a normally-off device that combines Nexperia’s latest high-voltage GaN HEMT H2 technology and low-voltage silicon MOSFET technologies — offering superior reliability and performance.
0 V to 12 V drive voltage
Gate threshold voltage VGSth of 4 V
Robust gate oxide with ±20 V VGS rating
High gate threshold voltage of 4 V for gate bounce immunity
Low body diode Vf for reduced losses and simplified dead-time adjustments
Transient over-voltage capability for increased robustness
Improved reliability, with reduced Rth(j-mb) for optimal cooling
Lower inductances for lower switching losses and EMI
150 °C maximum junction temperature
High Board Level Reliability absorbing mechanical stress during thermal cycling, unlike traditional QFN packages
Visual (AOI) soldering inspection, no need for expensive x-ray equipment
Easy solder wetting for good mechanical solder joints
Hard and soft switching converters for industrial and datacom power
Bridgeless totempole PFC
PV and UPS inverters
Servo motor drives
