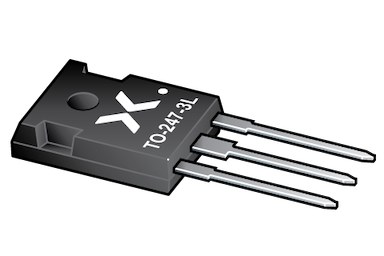

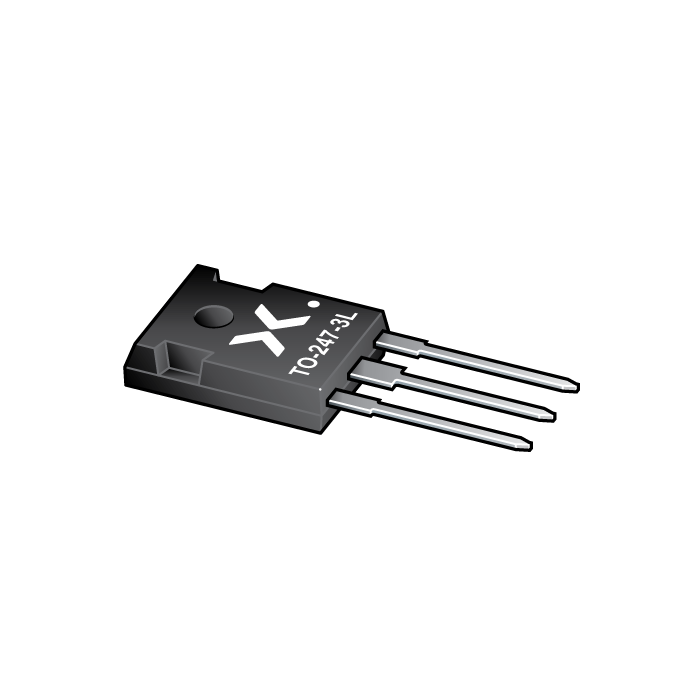

图像仅供参考
请参阅产品规格
- 商品编号:NGW30T60M3DFQ
- 简述:600 V, 30 A trench field-stop IGBT with full rated silicon diode
- 描述:
The NGW30T60M3DF is a robust Insulated-Gate Bipolar Transistor (IGBT) featuring third-generation technology. It combines carrier stored trench-gate and field-stop (FS) structures. The NGW30T60M3DF is rated to 175 °C with optimized IGBT turn-off losses, and has a short circuit withstand time of 5 μs. This hard-switching 600 V, 30 A IGBT is optimized for high-voltage, low-frequency industrial power inverter and servo motor drive applications.
- 数据手册:
- 数量：
- 单价:¥21.0331
- 总价:¥0.0000
- 数量单价总价
- 1¥21.0331¥21.0331
- 100¥17.9504¥1,795.0400
- 300¥16.9560¥5,086.8000
特性
Collector current (IC) rated at 30 A
Low conduction and switching losses
Stable and tight parameters for easy parallel operation
Maximum junction temperature of 175 °C
Fully rated as a soft fast reverse recovery diode
5 μs short circuit withstand time
RoHS compliant, lead-free plating
目标应用
Motor drives for industrial and consumer appliances
- Servo motors operating between 5-20 kW (up to 20 kHz) for robotics, elevators, operating grippers, in-line manufacturing, etc.
Power inverters
Uninterruptible Power Supply (UPS) inverter
Photovoltaic (PV) strings
EV charging
Induction heating
Welding
