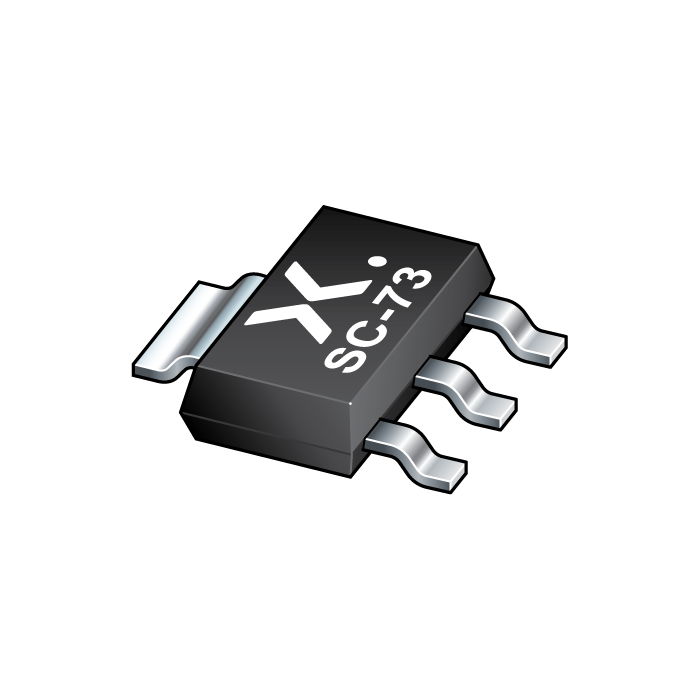

    NCR420ZX
    NCR420Z / NCR421Z

    图像仅供参考

    请参阅产品规格

    • 商品编号:
      NCR420ZX
    • 简述:
      150 mA LED driver in SOT223
    • 描述:

      LED driver consisting of a resistor-equipped NPN transistor with two diodes on one chip in a medium power SOT223 (SC-73) plastic package.

      Table 1. Product overview
      Type numberPackage
      NexperiaJEITA

      NCR420Z

      SOT223

      		SC-73

      NCR421Z

    • 数据手册:
    库存：0
    • 数量：
    • 单价:
      ¥2.5524
    • 总价:
      ¥0.0000
    价格（包含13%的增值税）
    数量单价总价
    1¥2.5524¥2.5524
    100¥1.9058¥190.5800
    300¥1.4973¥449.1900

    特性

    • Stabilized output current of 10 mA without external resistor

    • Stabilized output current adjustable up to 150 mA when an external resistor is used

    • High current accuracy at supply voltage variation

    • Low voltage overhead of 1.4 V

    • Reduces component count and board space

    • High power dissipation of 1250 mW

    • Supply voltage up to 40 V

    • Digital PWM input up to 10 kHz frequency for NCR421Z

    • AEC-Q101 qualified

    目标应用

    • Constant LED driver

    • Generic constant current source

    • Automotive applications (for example: interior lighting, dash board, instrumentation, number plate light)

    • Increase stabilized output current by paralleling drivers

    暂无数据
    数据手册
    下载数据手册
