PNE20020EPX
分享

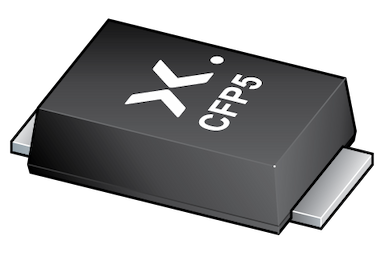

图像仅供参考
请参阅产品规格
- 商品编号:PNE20020EPX
- 简述:200 V, 2 A hyperfast recovery rectifier
- 描述:
High power density, hyperfast recovery rectifier with high-efficiency planar technology, encapsulated in a small and flat lead CFP5 (SOD128) Surface-Mounted Device (SMD) plastic package.
- 数据手册:
库存：2,800
- 数量：
- 单价:¥2.1777
- 总价:¥0.0000
价格（包含13%的增值税）
- 数量单价总价
- 1¥2.1777¥2.1777
- 100¥1.4220¥142.2000
- 300¥1.2828¥384.8400
特性
Reverse voltage VR ≤ 200 V
Forward current IF ≤ 2 A
Switching time trr ≤ 25 ns
Pt doped lifetime control
Low inductance
Small and flat lead SMD plastic package
Package height typ. 1 mm
High power capability due to clip-bond technology
Planar die design
Capable for reflow and wave soldering
AEC-Q qualified
目标应用
General-purpose rectification
Reverse polarity protection
Hyperfast switching
Freewheeling applications
数据手册
