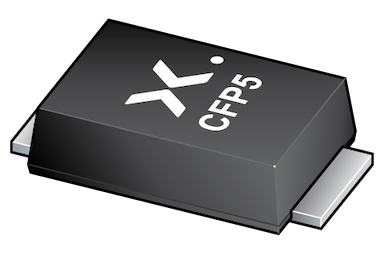

    PNE20030EPX
    PNE20030EP

    图像仅供参考

    请参阅产品规格

    • 商品编号:
      PNE20030EPX
    • 简述:
      200 V, 3 A hyperfast  recovery rectifier
    • 描述:

      High power density, hyperfast recovery rectifier with high-efficiency planar technology, encapsulated in a small and flat lead CFP5 (SOD128) Surface-Mounted Device (SMD) plastic package.

    • 数据手册:
    库存：3,000
    • 数量：
    • 单价:
      ¥2.5556
    • 总价:
      ¥0.0000
    价格（包含13%的增值税）
    数量单价总价
    1¥2.5556¥2.5556
    100¥1.7501¥175.0100
    300¥1.3922¥417.6600

    特性

    • Reverse voltage VR ≤ 200 V

    • Forward current IF ≤ 3 A

    • Switching time trr ≤ 30 ns

    • Pt doped life time control

    • Low inductance

    • Small and flat lead SMD plastic package

    • Package height typ. 1 mm

    • High power capability due to clip-bond technology

    • Planar die design

    • Capable for reflow and wave soldering

    • AEC-Q101 qualified

    目标应用

    • General-purpose rectification

    • Reverse polarity protection

    • Hyperfast switching

    • Freewheeling applications
